Brand:aa
Product detail:
Water Pump Coupling

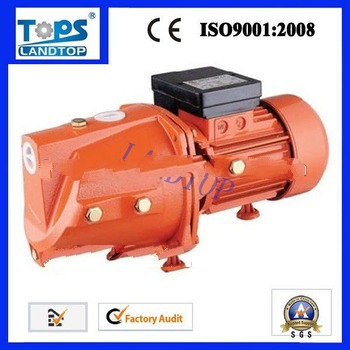

- Self-priming JET pump is high efficient electric water pump with excellent suction.
- It can be used for pumping clean water and fluids which are not chemically aggressive to the pump components.
- It is extremely reliable and suitable for self-priming operation, widely using in the domestic and civil applications, small-scale agriculture, irrigating gardens etc.
- The jet pump should be installed in a dry and covered area, protected against the weather.
Construction:
PUMP-Self-priming jet pump
Pump Body: Cast Iron/Stainless Steel/Brass
Front Cover: Cast Iron/Cast Iron with brass insert / Aluminum / Brass
Impeller: Brass/Aluminum/PPO
Mechanical Seal: Carbon/Ceramic/Stainless Steel
Motor Housing: Alloy Aluminum
Shaft: Carbon Steel/Stainless Steel/High Frequency Wedding Shaft
Insulation: Class B / Class F
Protection: IP44 / IP54
Cooling: External Ventilation
With thermal overload protector in single phase motor
Operating Condition
Suction head up to 40M
Liquid temperature up to 60C
Ambient temperature up to 40C
Max.Pressure:10Bar
WARRANTY: 1 YEAR (according to our general sales conditions)
If you need more information about this series, please feel free to contact us.
| Type | Power | Q. Max | H. Max | Suct. Max | Speed | Inlet/outlet | DIMENSION& N. W | |||
| Single Phase | Three Phase | HP | KW | l/min | m | m | (r/min) | L× W× H(mm) | N. W(kg) | |
| JET-60L | JET-60L | 0.5 | 0.37 | 36 | 30 | 9 | 2850 | 1" × 1" | 410× 185× 220 | 11.9 |
| JET-80L | JET-80L | 0.75 | 0.55 | 48 | 45 | 1" × 1" | 480× 210× 220 | 15.9 | ||
| JET-100L | JET-100L | 1 | 0.75 | 52 | 50 | 1" × 1" | 480× 210× 220 | 16.9 | ||
| JET-150L | JET-150L | 1.5 | 1.1 | 60 | 55 | 1" × 1" | 580× 250× 320 | 31.7 | ||
| JET-200L | JET-200L | 2 | 1.5 | 70 | 60 | 1" × 1" | 580× 250× 320 | 34.6 | ||
